Win Store stocks three blade constructions: conventional at about 1,562 listings, flat at 330 and hybrid at 185. They are not simply better and worse — each suits a different windscreen curve, a different speed and a different price point, and fitting the wrong one to a strongly curved screen leaves streaks the customer will bring back.
Win Store တွင် blade တည်ဆောက်မှု သုံးမျိုး ရှိသည် — conventional စာရင်း ၁,၅၆၂ ခန့်၊ flat ၃၃၀ နှင့် hybrid ၁၈၅ ဖြစ်သည်။ ၎င်းတို့သည် ကောင်းသည် ညံ့သည် သက်သက် မဟုတ်ပါ — တစ်ခုစီသည် မတူသော မှန်အကွေး၊ မတူသော အရှိန်နှင့် မတူသော ဈေးနှုန်းအဆင့်နှင့် သင့်တော်ပြီး ပြင်းစွာကွေးသော မှန်တွင် မှားတပ်လျှင် ဖောက်သည် ပြန်ယူလာမည့် ရောင်ကြောင်းများ ကျန်ခဲ့စေသည်။
What is a conventional blade?
Conventional blade ဆိုတာ ဘာလဲ
A metal frame with six or eight pressure points — the yokes — that distribute the arm load along a flexible rubber strip held in two steel splines. It suits strongly curved screens because the jointed frame follows the curve, and it is the cheapest to make, which is why it is by far the most stocked type.
Yoke ဟုခေါ်သော ဖိအားမှတ် ခြောက်ခု သို့မဟုတ် ရှစ်ခုပါသော သတ္တုဘောင်ဖြစ်ပြီး စတီး spline နှစ်ခုဖြင့် ထိန်းထားသည့် ပျော့ပျောင်းသော ရာဘာအပြားတစ်လျှောက် လက်တံဝန်ကို ဖြန့်ပေးသည်။ အဆစ်ပါသော ဘောင်သည် အကွေးကို လိုက်နိုင်သဖြင့် ပြင်းစွာကွေးသော မှန်များနှင့် သင့်တော်ပြီး ထုတ်လုပ်ရန် အဈေးအပေါဆုံး ဖြစ်ကာ ထို့ကြောင့် အများဆုံး ကုန်လှောင်ထားသော အမျိုးအစား ဖြစ်ခြင်း ဖြစ်သည်။
What is a flat or beam blade?
Flat သို့မဟုတ် beam blade ဆိုတာ ဘာလဲ
A one-piece blade with a curved spring steel strip moulded inside the rubber, with no external frame at all. The spring is pre-curved tighter than the screen so it presses evenly when flattened against it. It has no yokes to ice up or catch wind, and it lifts far less above about 120 km/h.
ရာဘာအတွင်း ပုံသွင်းထားသော ကွေးနေသည့် စပရိန်စတီးအပြားပါပြီး အပြင်ဘောင် လုံးဝမပါသော တစ်သားတည်း blade ဖြစ်သည်။ စပရိန်ကို မှန်ထက် ပိုကျပ်စွာ ကြိုတင်ကွေးထားသဖြင့် မှန်နှင့် ကပ်ပြားသောအခါ ညီညာစွာ ဖိသည်။ ရေခဲတက် သို့မဟုတ် လေဖမ်းသော yoke မရှိဘဲ ၁၂၀ ကီမီ/နာရီခန့်အထက်တွင် အများကြီး နည်းနည်းသာ ကြွသည်။
What does a hybrid blade combine?
Hybrid blade က ဘာတွေ ပေါင်းစပ်ထားသလဲ
A conventional jointed frame hidden inside an aerodynamic plastic shell. It follows a curved screen like a conventional blade while resisting wind lift like a flat blade. It costs more than either and is the usual original fitment on newer Japanese and Korean cars that came with a shrouded wiper.
လေအားနည်းစေသော ပလတ်စတစ်ခွံအတွင်း ဖုံးထားသည့် conventional အဆစ်ပါဘောင် ဖြစ်သည်။ Conventional blade ကဲ့သို့ ကွေးနေသောမှန်ကို လိုက်နိုင်ပြီး flat blade ကဲ့သို့ လေကြွခြင်းကို ခံနိုင်သည်။ နှစ်ခုစလုံးထက် ဈေးပိုကြီးပြီး ဖုံးထားသော wiper ပါလာသည့် ဂျပန်နှင့် ကိုရီးယား ကားအသစ်များ၏ ပုံမှန် မူရင်းတပ်ဆင်မှု ဖြစ်သည်။
Can a flat blade replace a conventional one?
Flat blade က conventional ကို အစားထိုးနိုင်သလား
Usually yes if the connector matches and the length is right, and it is a common upgrade. The one thing to check is screen curvature — on a deeply curved older windscreen a cheap flat blade can lift at the outer end and leave an unwiped band 30 to 50 mm wide at the edge.
ဆက်စပ်ကိရိယာ ကိုက်ပြီး အလျား မှန်လျှင် များသောအားဖြင့် ရပြီး အဖြစ်များသော အဆင့်မြှင့်မှု ဖြစ်သည်။ စစ်ရမည့် တစ်ခုတည်းသောအရာမှာ မှန်အကွေး ဖြစ်သည် — နက်စွာကွေးသော ရှေ့မှန်ဟောင်းတွင် ဈေးပေါသော flat blade သည် အပြင်ဘက်အဆုံးတွင် ကြွတက်ပြီး အနားတွင် ၃၀ မှ ၅၀ မမ ကျယ်သော မသုတ်ရသည့် အကွက် ကျန်ခဲ့စေနိုင်သည်။
Which lasts longest?
ဘယ်ဟာ အကြာဆုံး ခံသလဲ
The rubber compound decides that, not the frame. A good natural rubber blade lasts six to twelve months; a silicone or graphite-coated blade can reach eighteen. A cheap flat blade with hard rubber will outlast none of them. Judge by the rubber and the brand, not by the shape.
ဘောင်မဟုတ်ဘဲ ရာဘာ ဖွဲ့စည်းမှုက ဆုံးဖြတ်သည်။ ကောင်းသော သဘာဝရာဘာ blade သည် ခြောက်လမှ တစ်နှစ် ခံပြီး silicone သို့မဟုတ် graphite ကပ်ထားသော blade သည် တစ်နှစ်ခွဲ ရောက်နိုင်သည်။ ရာဘာမာသော ဈေးပေါ flat blade သည် ၎င်းတို့ထဲမှ မည်သည့်ဟာကိုမျှ မကျော်နိုင်ပါ။ ပုံသဏ္ဌာန်မဟုတ်ဘဲ ရာဘာနှင့် အမှတ်တံဆိပ်ဖြင့် ဆုံးဖြတ်ပါ။
Which should the counter recommend?
ကောင်တာက ဘယ်ဟာကို အကြံပေးသင့်သလဲ
What the vehicle came with, unless the customer has a specific complaint. If they mention wipers lifting on the highway, a flat or hybrid blade is a genuine improvement. If they mention streaks at the edge of the screen, the answer is usually a conventional blade or a different length, not a more expensive type.
ဖောက်သည်တွင် သီးသန့် တိုင်ကြားချက် မရှိလျှင် ယာဉ်နှင့် ပါလာသည့်အတိုင်း ဖြစ်သည်။ အဝေးပြေးလမ်းတွင် wiper ကြွသည်ဟု ပြောလျှင် flat သို့မဟုတ် hybrid blade သည် စစ်မှန်သော တိုးတက်မှု ဖြစ်သည်။ မှန်အနားတွင် ရောင်ကြောင်းများဟု ပြောလျှင် အဖြေသည် များသောအားဖြင့် ဈေးပိုကြီးသော အမျိုးအစားမဟုတ်ဘဲ conventional blade သို့မဟုတ် အလျား မတူတစ်ခု ဖြစ်သည်။

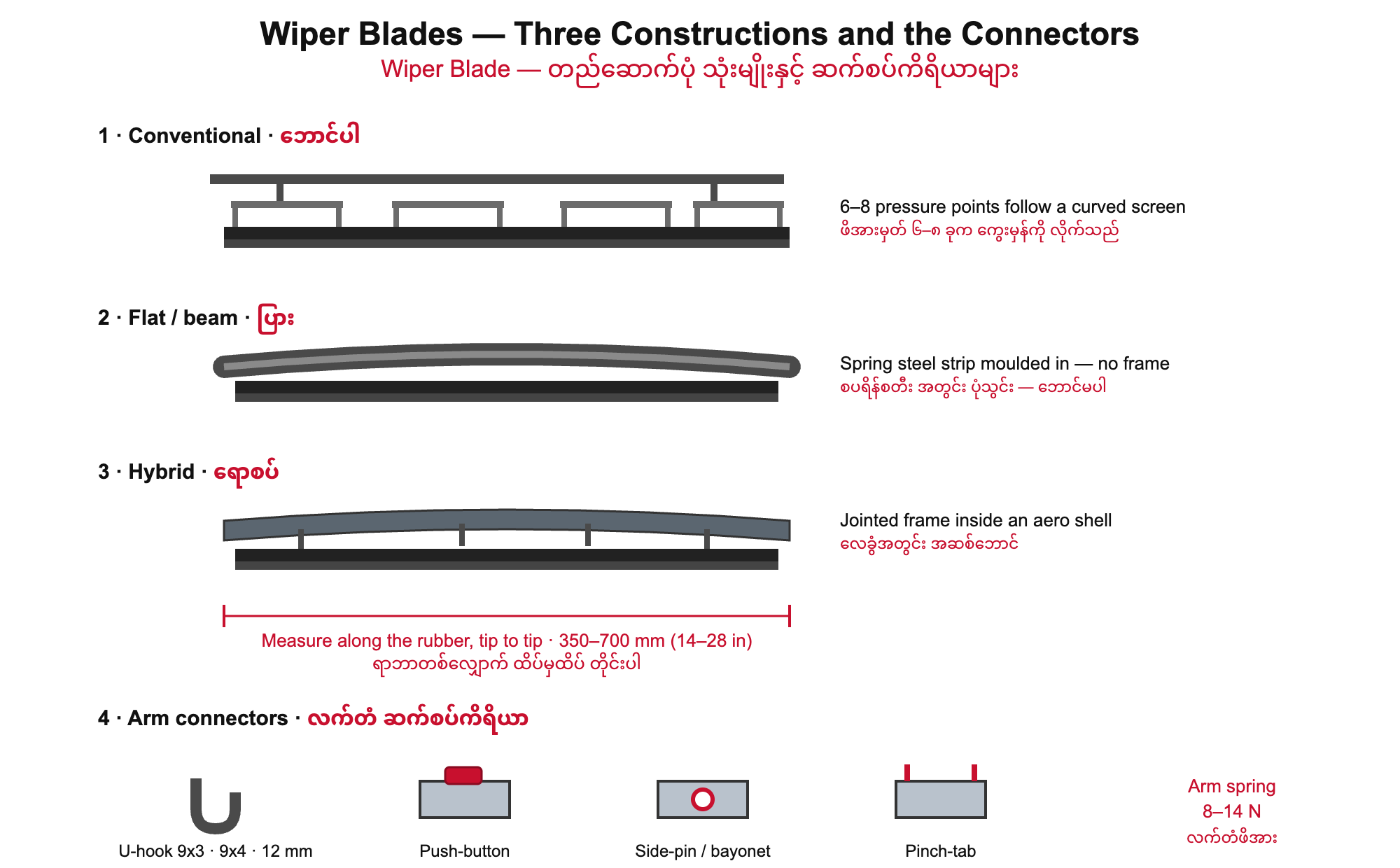

Diagram — Blade Constructions and Arm Connectors
The three blades are drawn from the side, one above the other, with the rubber strip in black along the bottom of each. The conventional blade at the top shows the jointed metal frame — a main yoke carrying two secondary yokes, giving six to eight separate pressure points that let the blade bend to follow a strongly curved windscreen. The flat or beam blade in the middle has no frame at all: a curved spring steel strip is moulded inside the rubber, pre-curved tighter than the glass so it presses evenly when flattened against it. The hybrid at the bottom hides a jointed frame inside an aerodynamic plastic shell, combining the curve-following of the first with the wind resistance of the second. The red dimension line shows how length is measured — along the rubber from tip to tip, 350 to 700 mm, which is 14 to 28 inches. The four connectors at the bottom are the fittings that join blade to arm: the U-hook in its three widths of 9x3, 9x4 and 12 mm, the push-button used on newer Toyota and Honda, the side-pin or bayonet, and the pinch-tab. The arm spring behind all of them holds the blade to the glass with 8 to 14 newtons.
Blade သုံးမျိုးကို ဘေးမှ တစ်ခုအပေါ်တစ်ခု ဆွဲထားပြီး ရာဘာအပြားကို တစ်ခုစီ၏ အောက်ခြေတွင် အနက်ရောင်ဖြင့် ပြထားသည်။ အပေါ်ဆုံးရှိ conventional blade သည် အဆစ်ပါ သတ္တုဘောင်ကို ပြသည် — အဓိက yoke က အရန် yoke နှစ်ခုကို ထမ်းထားပြီး သီးခြား ဖိအားမှတ် ခြောက်ခုမှ ရှစ်ခုအထိ ပေးကာ blade ကို ပြင်းစွာကွေးသော ရှေ့မှန်ကို လိုက်နိုင်စေသည်။ အလယ်ရှိ flat သို့မဟုတ် beam blade တွင် ဘောင် လုံးဝ မပါပါ — ကွေးနေသော စပရိန်စတီးအပြားကို ရာဘာအတွင်း ပုံသွင်းထားပြီး မှန်ထက် ပိုကျပ်စွာ ကြိုကွေးထားသဖြင့် မှန်နှင့် ကပ်ပြားသောအခါ ညီညာစွာ ဖိသည်။ အောက်ဆုံးရှိ hybrid သည် လေအားနည်းစေသော ပလတ်စတစ်ခွံအတွင်း အဆစ်ပါဘောင်ကို ဖုံးထားပြီး ပထမတစ်ခု၏ အကွေးလိုက်နိုင်စွမ်းနှင့် ဒုတိယတစ်ခု၏ လေခံနိုင်စွမ်းကို ပေါင်းစပ်ထားသည်။ အနီရောင် အတိုင်းအတာမျဉ်းသည် အလျားကို ဘယ်လိုတိုင်းသည် ပြသည် — ရာဘာတစ်လျှောက် ထိပ်မှထိပ်အထိ ၃၅၀ မှ ၇၀၀ မမ ဖြစ်ပြီး ၁၄ မှ ၂၈ လက်မ ဖြစ်သည်။ အောက်ဆုံးရှိ ဆက်စပ်ကိရိယာ လေးခုသည် blade ကို လက်တံနှင့် ဆက်ပေးသော တပ်ဆင်မှုများ ဖြစ်သည် — အကျယ် သုံးမျိုးဖြစ်သော 9x3၊ 9x4 နှင့် ၁၂ မမ U-hook၊ Toyota နှင့် Honda အသစ်များတွင် သုံးသော push-button၊ side-pin သို့မဟုတ် bayonet၊ နှင့် pinch-tab ဖြစ်သည်။ ၎င်းတို့အားလုံး၏ နောက်ကွယ်ရှိ လက်တံစပရိန်သည် blade ကို မှန်နှင့် ၈ မှ ၁၄ နယူတန်ဖြင့် ထိန်းထားသည်။
